Vipasana ransomware new ransom on the block


Yet another ransomware is going around (since at least the 20th of December), which I've dubbed Vipasana ransomware due to where you need to send your encrypted files to:

Message in Russian, you need to mail vipasana4@aol.com to get your files back



















The name may be derived from Vipassanā or 'insight meditation'.

The message in Russian reads:

твои файлы зашифрованы, если хочешь
все вернуть, отправь 1 зашифрованный файл на эту почту:

vipasana4@aol.com

ВНИМАНИЕ!!! у вас есть 1 неделя что-бы написать мне на почту, по прошествии
этого срока расшифровка станет не возможна!!!!

Translated:

Your files are encrypted, if you want them all returned,
send 1 encrypted file to this email:


vipasana4@aol.com

ATTENTION!!! you have 1 week to send the email, after
this deadline decryption will not be possible !!!!

It seems these ransomware authors first want you to send an email before requiring any other action, rather than immediately (or in a certain timeframe) paying Bitcoins to get your files back. In this sense, their technique is novel. Instead of the usual 24/48/72h to pay up, they give you a week.

Do not be fooled: this does not make them 'good guys' in any way, they encrypted your files and as such are criminals.

Search results for vipasana4@aol.com are non-existent, with the exception of one victim hit by this ransomware:



Email addresses used in this specific ransomware campaign:
johnmen.24@aol.com
vipasana4@aol.com


Files will be encrypted and renamed following below naming convention:
email-vipasana4@aol.com.ver-CL 1.2.0.0.id-[ID]-[DATE-TIME].randomname-[RANDOM].[XYZ].CBF

Where [XYZ] is also a random 'extension', the real extension is .cbf

ver-CL 1.2.0.0 may refer to the version number of the ransomware, indicating there are older versions as well.

Targeted file extensions:

.r3d, .rwl, .rx2, .p12, .sbs, .sldasm, .wps, .sldprt, .odc, .odb, .old, .nbd, .nx1, .nrw, .orf, .ppt, .mov, .mpeg, .csv, .mdb, .cer, .arj, .ods, .mkv, .avi, .odt, .pdf, .docx, .gzip, .m2v, .cpt, .raw, .cdr, .cdx, .1cd, .3gp, .7z, .rar, .db3, .zip, .xlsx, .xls, .rtf, .doc, .jpeg, .jpg, .psd, .zip, .ert, .bak, .xml, .cf, .mdf, .fil, .spr, .accdb, .abf, .a3d, .asm, .fbx, .fbw, .fbk, .fdb, .fbf, .max, .m3d, .dbf, .ldf, .keystore, .iv2i, .gbk, .gho, .sn1, .sna, .spf, .sr2, .srf, .srw, .tis, .tbl, .x3f, .ods, .pef, .pptm, .txt, .pst, .ptx, .pz3, .mp3, .odp, .qic, .wps



I have sent over all necessary files to the good people over at Bleeping Computer, as there may be a way to recover files. If so, I will update this post.

Update - 12/02: thanks to a tweet from Catalin this appears to be another version of so called "offline" ransomware, discovered by Check Point:
“Offline” Ransomware Encrypts Your Data without C&C Communication

Unfortunately, there doesn't appear to be a way to recover your files once encrypted. Your best best in trying to recover files is using a tool like Shadow Explorer, which will check if you can restore files using 'shadow copies' or 'shadow volume copies'.

If that doesn't work, you may try using a data recovery program such as PhotoRec or Recuva




Conclusion


Ransomware is, unfortunately, long from gone. Almost each week or month, new variants or totally new strains of ransomware are popping up. In this way, the first and foremost rule is:

Create (regular) backups!

For more prevention advise, see here

You may also find a list of Indicators of Compromise (IOCs; hashes, domains, ...) over at AlienVault:
Vipasana ransomware

Chrome extension empties your Steam inventory


I recently got notified about the following topic (and post) on TeamFortress.tv:
Known scammer alt opening a gambling site

In there, you can see a Steam user named Delta (Steam profile down below) has created several 'helpful' Chrome extensions for Counter-Strike: Global Offensive (CS:GO).

A few examples:

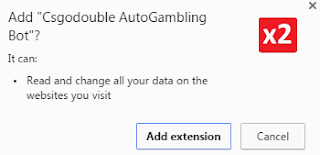

'Read and change all your data on the websites you visit'





























Other examples are:

CSGODouble Theme Changer
CS:GO Double Withdraw Helper
Csgodouble AutoGambling Bot
Improved CSGODouble

Instead of being able to change your CS:GO Double theme, your items from your inventory are getting stolen; instead of trading with X or Y person you trust, the items go to the scammer rather than whoever you're trading with:





All the addons he made can be found here. You can report them to Google as well by clicking 'Report Abuse' > 'Malware'. Note: some of them are still in the store despite several reports.

Update (20/01): all mentioned extensions are now removed from the Chrome Web Store.



76561198254328724 is the Steam ID of the scammer, who currently has a/is on trade probation; which means they recently had a trade ban removed.










Update (20/01): 'Delta' is now trade banned (again):










You can find his Steam profile here and his SteamRep profile here. (SteamRep is "a non-profit site that partners with community administrators to improve the safety of game-related trading.")





Disinfection

As opposed to actual SteamStealers, this one's pretty easy to disinfect or remove, as you can simply remove the extension(s) from Chrome:











In this example:








You may read more about installing, managing and removing extensions here. If you're having problems removing one of the extensions, you can also try resetting your Chrome browser.



Prevention


Does it look suspicious? Does it sound too good to be true? Don't install it!

For more prevention tips on securing your Steam account, see my earlier post about SteamStealers here.

Steam also has a FAQ set up in regards to: Spyware, Malware, Adware, or Virus Interfering with Steam



Conclusion

SteamStealers are (unfortunately) nothing new. Criminals are getting craftier and better in attempting to steal items or account credentials (along with other credentials) from unsuspecting users.

As opposed to actual malware or SteamStealers being loaded on your machine, this time it's a browser extension - thus be wary of anything that looks too good to be true and think twice
before you install anything (whether that be an extensions, a 'screensaver' or images that look like you ;) ).

Follow the prevention tips above to stay safe. For any questions or feedback, don't hesitate to comment.


Security Predictions 2016



Since everyone's doing it, here are some of my security predictions for 2016.


  • More ransomware
  • More misuse of the word 'CryptoLocker' (this ransomware died somewhere in 2014)
  • More malware
  • More misspellings of malware ('mallware', 'maleware', etc.)
  • More IoT devices (Internet of Things)
  • More ransomware or other malware for IoT devices
  • More database/company breaches
  • More spam, phishing, etc.
  • More (ATM) skimming
  • More nation-state malware
  • More governments spying on their citizens
  • More privacy concerns
  • ...

Essentially: more of the same. I also suspect 2016 the year of more nation-state malware to be discovered/uncovered. And of course more encrypting ransomware (aka 'cryptoware') as it's still a succesful recipe. As long as people pay the ransom, they will keep bringing out new & improved versions/variants.

More security predictions (and probably more explained in depth or simply better ones) can be found by performing a search with your favorite search engine.

May you have a safe, malware-free, privacy-friendly 2016!

More ransomware shenanigans


Recently, an update of the infamous CryptoWall ransomware (or cryptoware) was released - you can read more about that particular ransomwere here: CryptoWall 4.0 released with new Features such as Encrypted File Names

Additionally, another ransomware variant has made a return, read more about that one here:
“Offline” Ransomware Encrypts Your Data without C&C Communication

And let's not forget about this one either: Chimera Ransomware focuses on business computers

Did I mention yet there's ransomware for Linux as well? Have a look at Linux.Encoder.1 while you're at it.

... But wait, there's more! You've guessed it, yet another ransomware variant has returned. I wonder what's going on these days, the (cyber)criminals seem to get even more competitive.

Lawrence Abrams over at Bleeping Computer recently wrote an article about the variant we have here as well, as we have caught an updated variant of Poshcoder or Poshkoder or Power Worm:
Shoddy Programming causes new Ransomware to destroy your Data


Moving on to the infection vector and process:







Kan du kontrollera den bifogade filen och låt mig veta vad du tycker? Tack









I just got this document, could you please check it and get back to me? Thanks


Email headers indicate:
Received: from techdallas.xyz (45.63.12.192.vultr.com [45.63.12.192])

45.63.12.192 - IPvoid - Whois

IP location: United States (VirusTotal)








Attached is a file called Bilaga.doc or Document.doc. Other variations are possible, depending on the language (in this case either Swedish or English).

Let's see what's inside Bilaga.doc:

Ole10Native is in fact a VBS file


As you can see, there's an ObjectPool present, containing an Ole native file. The former contains storages for embedded OLE objects. In this case, it's containing a VBS file:


The VBscript uses Powershell with certain flags or parameters to download a file to the %TEMP% folder and execute it:
(Note that by default PowerShell is configured to prevent the execution of PowerShell scripts on Windows systems)

  • -WindowStyle hidden: don't display anything to the user (set WindowStyle as hidden)
  • -ExecutionPolicy Bypass: no scrips are blocked, neither are there any warnings or prompts
  • -nologo: starts the PowerShell console without displaying the copyright banner
  • -noprofile: tells PowerShell to not load profile (user) scripts
You can find a tad more information on these commands here.

But what is the user seeing? Opening the Word document, there's another, clickable 'document':
Clicking the icon, warning message from Word
















Decoy message













Then nothing happens, except in the background:
PowerShell download & running the malware







Another PowerShell script (.ps1 file) is being executed, which will start encrypting files with the following extensions:

"*.pdf","*.xls","*.docx","*.xlsx","*.mp3","*.waw","*.jpg","*.jpeg","*.txt","*.rtf","*.doc","*.rar","*.zip","*.psd","*.tif","*.wma","*.gif","*.bmp","*.ppt","*.pptx","*.docm","*.xlsm","*.pps","*.ppsx","*.ppd","*.eps","*.png","*.ace","*.djvu","*.tar","*.cdr","*.max","*.wmv","*.avi","*.wav","*.mp4","*.pdd","*.php","*.aac","*.ac3","*.amf","*.amr","*.dwg","*.dxf","*.accdb","*.mod","*.tax2013","*.tax2014","*.oga","*.ogg","*.pbf","*.ra","*.raw","*.saf","*.val","*.wave","*.wow","*.wpk","*.3g2","*.3gp","*.3gp2","*.3mm","*.amx","*.avs","*.bik","*.dir","*.divx","*.dvx","*.evo","*.flv","*.qtq","*.tch","*.rts","*.rum","*.rv","*.scn","*.srt","*.stx","*.svi","*.swf","*.trp","*.vdo","*.wm","*.wmd","*.wmmp","*.wmx","*.wvx","*.xvid","*.3d","*.3d4","*.3df8","*.pbs","*.adi","*.ais","*.amu","*.arr","*.bmc","*.bmf","*.cag","*.cam","*.dng","*.ink","*.jif","*.jiff","*.jpc","*.jpf","*.jpw","*.mag","*.mic","*.mip","*.msp","*.nav","*.ncd","*.odc","*.odi","*.opf","*.qif","*.xwd","*.abw","*.act","*.adt","*.aim","*.ans","*.asc","*.ase","*.bdp","*.bdr","*.bib","*.boc","*.crd","*.diz","*.dot","*.dotm","*.dotx","*.dvi","*.dxe","*.mlx","*.err","*.euc","*.faq","*.fdr","*.fds","*.gthr","*.idx","*.kwd","*.lp2","*.ltr","*.man","*.mbox","*.msg","*.nfo","*.now","*.odm","*.oft","*.pwi","*.rng","*.rtx","*.run","*.ssa","*.text","*.unx","*.wbk","*.wsh","*.7z","*.arc","*.ari","*.arj","*.car","*.cbr","*.cbz","*.gz","*.gzig","*.jgz","*.pak","*.pcv","*.puz","*.r00","*.r01","*.r02","*.r03","*.rev","*.sdn","*.sen","*.sfs","*.sfx","*.sh","*.shar","*.shr","*.sqx","*.tbz2","*.tg","*.tlz","*.vsi","*.wad","*.war","*.xpi","*.z02","*.z04","*.zap","*.zipx","*.zoo","*.ipa","*.isu","*.jar","*.js","*.udf","*.adr","*.ap","*.aro","*.asa","*.ascx","*.ashx","*.asmx","*.asp","*.indd","*.asr","*.qbb","*.bml","*.cer","*.cms","*.crt","*.dap","*.htm","*.moz","*.svr","*.url","*.wdgt","*.abk","*.bic","*.big","*.blp","*.bsp","*.cgf","*.chk","*.col","*.cty","*.dem","*.elf","*.ff","*.gam","*.grf","*.h3m","*.h4r","*.iwd","*.ldb","*.lgp","*.lvl","*.map","*.md3","*.mdl","*.mm6","*.mm7","*.mm8","*.nds","*.pbp","*.ppf","*.pwf","*.pxp","*.sad","*.sav","*.scm","*.scx","*.sdt","*.spr","*.sud","*.uax","*.umx","*.unr","*.uop","*.usa","*.usx","*.ut2","*.ut3","*.utc","*.utx","*.uvx","*.uxx","*.vmf","*.vtf","*.w3g","*.w3x","*.wtd","*.wtf","*.ccd","*.cd","*.cso","*.disk","*.dmg","*.dvd","*.fcd","*.flp","*.img","*.iso","*.isz","*.md0","*.md1","*.md2","*.mdf","*.mds","*.nrg","*.nri","*.vcd","*.vhd","*.snp","*.bkf","*.ade","*.adpb","*.dic","*.cch","*.ctt","*.dal","*.ddc","*.ddcx","*.dex","*.dif","*.dii","*.itdb","*.itl","*.kmz","*.lcd","*.lcf","*.mbx","*.mdn","*.odf","*.odp","*.ods","*.pab","*.pkb","*.pkh","*.pot","*.potx","*.pptm","*.psa","*.qdf","*.qel","*.rgn","*.rrt","*.rsw","*.rte","*.sdb","*.sdc","*.sds","*.sql","*.stt","*.t01","*.t03","*.t05","*.tcx","*.thmx","*.txd","*.txf","*.upoi","*.vmt","*.wks","*.wmdb","*.xl","*.xlc","*.xlr","*.xlsb","*.xltx","*.ltm","*.xlwx","*.mcd","*.cap","*.cc","*.cod","*.cp","*.cpp","*.cs","*.csi","*.dcp","*.dcu","*.dev","*.dob","*.dox","*.dpk","*.dpl","*.dpr","*.dsk","*.dsp","*.eql","*.ex","*.f90","*.fla","*.for","*.fpp","*.jav","*.java","*.lbi","*.owl","*.pl","*.plc","*.pli","*.pm","*.res","*.rsrc","*.so","*.swd","*.tpu","*.tpx","*.tu","*.tur","*.vc","*.yab","*.8ba","*.8bc","*.8be","*.8bf","*.8bi8","*.bi8","*.8bl","*.8bs","*.8bx","*.8by","*.8li","*.aip","*.amxx","*.ape","*.api","*.mxp","*.oxt","*.qpx","*.qtr","*.xla","*.xlam","*.xll","*.xlv","*.xpt","*.cfg","*.cwf","*.dbb","*.slt","*.bp2","*.bp3","*.bpl","*.clr","*.dbx","*.jc","*.potm","*.ppsm","*.prc","*.prt","*.shw","*.std","*.ver","*.wpl","*.xlm","*.yps","*.md3","*.1cd"

As you can see, it has covered quite a lot of extensions. Nathan Scott from Bleeping Computer provided an image with a great explanation on what the script does:

(Source)



















In the version I saw, the PowerShell scripts were slightly different, in fact an 'improved version'.

After encrypting all your files, it will drop an HTML file (named DECRYPT_INSTRUCTION.html) on the root of all your folders which contains the following message:

Ransom message - you may need to pay up to $ 1000















It generates your #UUID by the following simple PowerShell command:
Get-wmiobject Win32_ComputerSystemProduct UUID

When visiting said Onion (Tor) link:

Unlock message



Difference here from the version of October is that they also offer to decrypt 1 file, as proof they can actually decrypt all your files again. Unfortunately, the encryption fails horribly (for example, no extension is appended) and your files will be unrecoverable. For more information, see here.



Prevention

  • Don't open attachments from unknown senders - ever.
  • Install an antivirus and keep it up-to-date and running. Enable the option to scan Compressed Files.
  • Consider disabling Windows Script Host. You can use my tool, Rem-VBSworm with option D for example.
  • Alternatively, you can install Analog X's Script Defender, which will block these scripts (JS, VBS, ...) as well.
  • Consider disabling PowerShell if you don't need or use it. There are two possible options:



    Note that if you have a company laptop, you should inform with your network administrator first.
  • Improve security for your Microsoft Office package. (Word, Excel, ...)
    This means disabling ActiveX, disabling macros and blocking external content. Useful links:
    Enable or disable ActiveX controls in Office documents
    Enable or disable macros in Office documents
    Block or unblock external content in Office documents
  • As with all ransomware cases: take backups!

Some time ago, I did a Q&A on ransomware, which also included several general tips on how to prevent (ransomware and other) malware. You can find and read those tips here.




Disinfection
  • Identify and kill malicious processes (use Task Manager for example). In this specific case:
    winword.exe, wscript.exe, powershell.exe
  • Run a full scan with your installed antivirus product.
  • Run a full scan with another antivirus and/or antimalware product.
  • In a company: unplug your network cable & warn your network administrator immediately!



Conclusion

Ransomware is far from dead (that is, encrypting ransomware or cryptoware, the "old" ransomware isn't very much around anymore), thus it's important to take preventive measures as outlined above.

You may find IOCs (Indicators Of Compromise) as usual on AlienVault's OTX.


Resources

Microsoft - ObjectPool Storage


Acknowledgments

Thanks to my colleague Ville from Panda Security Sweden for alerting me about this incident and Lawrence & Nathan over at Bleeping Computer for their already available information.

A quick look at a signed spam campaign


I noticed the following tweet pass by on Twitter:


The mail received is as follows:

Spam but digitally signed















As Robert correctly notes, since the mail is digitally signed, it may entice people more to open the attachment and get infected. In case you're wondering, the key id of the certificate is as follows:
FE:22:B7:24:E3:4F:27:D9:05:E0:CC:B8:BD:DE:F4:8D:23:FD:2F:D9 (copy of cert on Pastebin)
Issuer: C=IT, O=DigitPA, OU=Ufficio interoperabilita' e cooperazione, CN=DigitPA CA1

Signature details. S/MIME message format





















Both first and second mail are coming from: 175.156.221.127 - IPvoid - Whois (DomainTools)

IP location: Singapore (VirusTotal)









On to the attachment (the .xml file is harmless):


"recalculation.zip" attached













Hello
This recalculation of payments for the last month.
I remind you of your debt 3148,48 AUD.
Please pay as soon as possible.


The ZIP file contains 2 files: recalculation_77979.pdf.js & info_9455.txt. The TXT file just contains the name of the first file, which tries to hide as a PDF file but is in fact JavaScript (JS).

Part of the JavaScript

















You can find the original JavaScript on Pastebin. You can also find the decoded base64 here and the final obtained JavaScript here. In the final JavaScript, you'll see it downloads a file and renames it to a random filename, then executes it:

Download

Run










It fetches a file from: 203.255.186.156 - IPvoid - Whois (DomainTools)
IP location: Korea (VirusTotal)








The eventual payload may be Andromeda/Gamarue, which will make your machine part of a botnet. Some information on the dropped DLL file (this is all static analysis):

Meta-data
==================================================================
File:    28236726.dll
Size:    495630 bytes
Type:    PE32 executable for MS Windows (DLL) (GUI) Intel 80386 32-bit
MD5:     934df5b173790da14ef3a817ec1fc422
SHA1:    e90b6e45f255350d0fd4cba361a09ad5d8271af1
ssdeep:  12288:GysxmAb/DC7BfWLc9ivHsegWDhNSKDWrV5rJfT:jo768wAAExDoPr9
Date:    0x429CE7C3 [Tue May 31 22:40:03 2005 UTC]
EP:      0x1000bddb .text 0/5
CRC:     Claimed: 0x0, Actual: 0x83498 [SUSPICIOUS]
Packers: Armadillo v1.xx - v2.xx

Functions in our DLL file




















You may also find the file on VirusTotal, SHA1 hash: e90b6e45f255350d0fd4cba361a09ad5d8271af1


There's also an analysis available by Reverse.it (Hybrid Analysis) on Windows 7 32bit & Windows 7 64bit. Feel free to perform any additional research on it, let me know if you find something interesting or should you find out exactly which kind of malware this is.

Just as a note, while all that is happening in the background, a decoy PDF file gets opened as well, as to not raise suspicion:

Decoy PDF document (not malicious)
















Prevention

For administrators:
  • Sender's end: Create an SPF record, as to prevent sender address forgery. More on SPF here.
  • Receiver's end: Turn on SPF checking on your mailserver.
  • If possible, turn on full support for DMARC. More on DMARC here.
  • Check that only your mailserver may access the WAN (or RED) on port 25. Configure this in your firewall.
  • Check that you use strong passwords for your Domain Controller server(s).
  • Check that antivirus is installed, up-to-date and running on all workstations. (if applicable)
  • If not needed, you can disable Windows Script Host (WSH), as it's needed for JavaScript to run locally. Read how to do that here

For endusers:
  • Don't open attachments from unknown senders - ever.
  • Install an antivirus and keep it up-to-date and running. Enable the option to scan Compressed Files.
  • Preferably, see that your antivirus has a firewall as well, to prevent unauthorised access.
  • Consider disabling Windows Script Host. You can use my tool, Rem-VBSworm with option D for example.
  • Alternatively, you can install Analog X's Script Defender, which will block these scripts (JS, VBS, ...) as well.
Some time ago, I did a Q&A on ransomware, which also included several general tips on how to prevent (ransomware and other) malware. You can find and read those tips here.




Disinfection

As usual:
  • Look for suspicious Run keys (find locations here) and delete the associated file(s).
    In our case, all files were dropped in the %TEMP% folder. Also, don't forget to look for rundll32.exe processes, as the payload was a DLL file. More information on rundll32 here.
  • Run a full scan with your installed antivirus product.
  • Run a full scan with another antivirus and/or antimalware product.
  • In a company: warn your network administrator immediately!




Conclusion

Now how was that mail sent out? There's no sure way of telling - it's possible the company is compromised (by either malware or an attacker), there's no SPF record, the certificate has been stolen (unlikely but not impossible), .... Most likely, a machine is infected by a spambot.

Note that with PEC (Posta Elettronica Certificata), a user can send a signed message even when the mailserver is not compromised. PEC means the server signs a message to ensure timestamp and sender, not content. More on PEC here (ITA) or here (EN). See also point 2 and 4 in the Prevention tips above.

I've contacted all related parties and hoping I'll get a reply soon, or at the very least they will perform some analysis and cleaning.

Follow the prevention tips above to stay safe. If you're looking for Indicators of Compromise (IOCs), they can be found as usual on AlienVault's OTX

Notes on Linux/Xor.DDoS


In this post we'll be focusing on a certain kind of malware: Linux/Xor.DDoS (also known as DDoS.XOR or Xorddos). As usual, we'll break the post down in several points:

Background
Diagnosis
Analysis
Disinfection
Prevention
Conclusion

The variant discussed in this blog post is an older variant, so certain infection mechanisms may have changed, as well as C&C's. The point of this post is to familiarize yourself with ELF malware in a better way - how to diagnose, analyse, remove and finally prevent malware from infecting your Linux machines. A lot of malware is going around and it's not (all) exclusively for Windows machines.



Background
You may have heard about Linux/Xor.DDoS already, a Linux Trojan with rootkit capabilities (belonging to the category of 'ELF malware'). What exactly is an ELF file? According to Wikipedia:

In computing, the Executable and Linkable Format (ELF, formerly called Extensible Linking Format) is a common standard file format for executables, object code, shared libraries, and core dumps.
Source
In other words: ELF is to Linux as PE (.exe, .com, .scr, ...) is to Windows and Mach-O to OS X.

There's a nice mini poster available by Corkami as well:

(Source)















More information about the ELF format can also be found at the Resources section.

If you haven't heard about Linux/Xor.DDoS itself already, be sure to read the initial post by MalwareMustDie uncovering this malware:
Fuzzy reversing a new China ELF "Linux/XOR.DDoS"

In short: Xor.DDoS is a multi-platform, polymorphic malware for Linux OS and its ultimate goal is to DDoS other machines. The name Xor.DDoS stems from the heavy usage of XOR encryption in both malware and network communication to the C&Cs (command and control servers).

There have been other write-ups about this malware as well, which will be mentioned throughout this article or referenced in the Resources section.



Diagnosis
How do you know you're infected with Xor.DDoS?

First and foremost (and obviously), you'll be conducting DDoS attacks from your machine(s) to targets chosen by the malware authors.

Sending of large SYN packets (Source)








You may use netstat to print any current network/internet connections. Use tcpdump to get a more detailed analysis of which packets you are sending out.


Secondly, another indication is seeing processes running with random names and sudden new executable files created in /etc/init.d/ or /usr/bin/ (see example below). New entries will be/are added to your crontab as well (/etc/crontab).

Malware running and its related files






















You may use any command based on top or on ps to check for running malicious processes. We will see more in the Disinfection part of this blog post.

Thirdly, if you are running the standard OpenSSH server you may see an unauthorised but successful login and immediate logout afterwards.
(Source)








These symptoms should be very clear, even more so if you've already implemented several measures to protect yourself from potential intruders. If not, then it'll be harder to track the infection origin as well. (but more often than not the SSH credentials of the root users are brute forced.)

To ensure your machines will not get pwned, be sure to read the Prevention part of this blog post.



Analysis
First off, we have to identify how the malware entered the system. Usually, a weak root password is used (like admin or 123456, see here for a list of tried passwords. Note: huge .txt file!) or the attackers are brute forcing their way in. (brute forcing the SSH credentials of the root user) Another, but less common possibility, is exploiting a vulnerable service that you have running (Apache for example).

This figure is an excellent visual representation on how it all happens:

(Source)

























This variant copies itself over to /lib/libgcc.so, then creates a copy in /etc/init.d and a symbolic link to /usr/bin. Afterwards a new cron script is created and added to the crontab.

We will now take a look at one of the samples created - named bmtsfnlgxu.
(SHA1: b34b6f0ec42a0153c043b0665ec47bf6e5aac894)

Easiest way on Linux is to just use the "file" command:




We can see it's an ELF 32-bit executable for i386 - and it's not stripped.

Why is that last part important? strip allows you to remove symbols and sections from choosen files, which in turn makes it harder to reverse engineer (disassemble) as well. In this case, the file doesn't seem to be stripped, great! For example, we can see the source files and get an idea of what this malware does:
(this will also be shown later on in the video below, using IDA)
















Moving on, we will start by using readelf for some further investigation of the file. We know, thanks to the file command, it's an ELF 32-bit executable for i386. Using readelf and parameter -h we will be able to gather more information:
















This gives us more information already, for example; the magic (7F 45 4C 46 for ELF files, 4D 5A for MZ files)  2's complement, little endian,  the exact type of the file (an executable; other types for ELF files may be a relocatable file, a shared object, a core file or processor specific) but most importantly here being the Entry point address, or the start of the program.

In regards to readelf, using parameter -a we can dump a ton of information, you can find the output of this command on our malware on Pastebin: Xor.DDoS - "readelf -a" output

Note that VirusTotal has added (since November 2014) detailed ELF information in reports as well, which is more or less similar to readelf's output.

To disassemble the file, we can use objdump which allows us to disassemble only those sections which are expected to contain instructions (-d parameter) or to disassemble the contents of all sections (-D parameter).


However, to dive a bit deeper into the malware code, we will be using IDA, a multi-processor disassembler and debugger and Radare, a well-known (portable) reversing framework. Note that it will still be a quick glance, as MalwareMustDie has already reported extensively  about it as well [1][2][3][4]. Note also that it's always a good idea to analyse malware in a virtual environment (VM).

We will be using both tools on Windows, but you can just as easily run them on Linux or Mac.

I've made an instruction video on how to use IDA Pro Free to take a quick peek into the file discussed:


Download IDA Pro Free for Windows from here. If you're interested in working more with IDA, there's a handy list of IDA plugins available here.



... And just the same for Radare, where we will discover a bit more - namely the C&C of the malware:

Download radare2 for Windows from here. More documentation about Radare can be found here. There's also a handy cheat sheet available here.

If you like GUIs, then I have another useful utility: ELFparser. It will perform a scoring based on several factors, such as shell commands, HTTP functionality and process manipulation. For example, for our file:











You can see it's scored pretty highly. I wonder what it has to say about the hardcoded IP addresses..:

You can also see 8.8.8.8, Google's DNS server
and likely used to resolve the C&C domains




















Great, it was able to extract our C&C servers:
103.25.9.228 - VirusTotal - IPvoid - DomainTools (whois)
103.25.9.229 - VirusTotal - IPvoid - DomainTools (whois)

Using ELFparser you can also look at the ELF header, sections, but also all of its capabilities like Information Gathering and Network Functions for example. It's a handy second-opinion tool.

Finally, one last tool which should not be missed when analysing ELF files: a sandbox. We will be using detux, a multiplatform Linux sandbox.

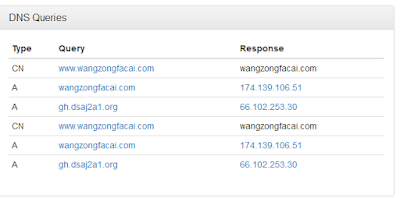

Connections to wangzongfacai.com and dsaj2a1.org














You have Network Analysis (IPs connected and DNS queries) and Static Analysis (Elf Info and Strings). In our example we have connections to wangzongfacai.com, not an unfamiliar domain. View the complete report made by Detux on our file here.

It's worth noting that several months ago, I already sent a file to Detux (and VirusTotal) which yielded similar results:

3000uc.com, another familiar player - and again dsaj2aX










Detux report of that file here. When I sent the latter file to VirusTotal several months ago, it only had 12 detections, after re-submitting it had 19 detections. That's better but we're still not there.
Just a visual representation of detection difference. Read this for info.















You may find an overview of all gathered files as well as most common/recurring domains and their IPs they connect to/download from here, available via AlienVault's OTX.

That's it for our Analysis section, let's move on to Disinfection.



Disinfection
Most importantly, you'd of course like to remove/disinfect this malware completely. Some pointers:

  • Identify malicious processes: run ps ef (ps stands for process status) to see which processes are running. Alternatively, you can use top or again ps with other parameters, for example ps ej or ps aux for a more complete, human readable table. Look for processes with random names; in our example it started with S90 and random letters afterwards, linked to files with all random names, as is the case in our example malware named bmtsfnlgxu.

    Once you've identified the malicious process(es), you can use the following command to find related files as well: for pid in $(ps -C -o pid=); do ls -la /proc/$pid/fd; done
    Where is the name of the suspicious process. This command will display any open, related files. For example, for bmtsfnlgxu it would be:
    for pid in $(ps -C bmtsfnlgxu -o pid=); do ls -la /proc/$pid/fd; done


  • Identify malicious files: look for newly created files in /etc/init.d/, /boot/ and /usr/bin/. Again, look for files with random names. You may also use the command ls -lat | head to view recently changed files.

    Check your crontab (/etc/crontab). Delete the malicious cron jobs, more specifically the cron.hourly jobs and in the case of Xor.DDoS they will be the following:

    */3 * * * * root /etc/cron.hourly/cron.sh
    */3 * * * * root /etc/cron.hourly/udev.sh

    Delete these two lines from your crontab. Don't forget to save. Delete the related files, located in /etc/cron.hourly. In our case, their content was as follows:

    cron.sh


         udev.sh





As said earlier, delete these files manually, as well as the file(s) mentioned in the scripts. (in this case: /lib/libgcc.so.bak, /lib/libgcc.so and /lib/libgcc4.4.so.) Note that these files are not related to GCC's runtime library and thus can be safely deleted. It's just another way how the malware tries to hide itself.

Also double-check there are no malicious files or scripts in /etc/rc.d. If so, remove them as well.


  • Stop and kill malicious processes: identify the parent process; usually it will be the one consuming the most CPU (which you can verify using any of the earlier commands, top being the easiest). Firstly, be sure to stop the parent process and wait for the child processes to die. Use the command: kill -STOP $pid

    When the child processes are dead, kill the parent by using: kill -9 $pid
    Note:
    in case you see any other malicious processes, go through the last 2 commands again.

  • Delete any leftover malicious files: locations where the malware may reside have been indicated before, but to be complete:
    /boot/
    /etc/init.d/
    /etc/rc.d
    /etc/rcX.d (where X is a number)
    /usr/bin/
    /lib/
    /lib/udev/udev
    /lib/udev/debug

That's it. Some additional tips and tricks:
  • Use rm -rf to permanently remove a file. Be careful with this command.
  • Having troubles removing a file? Are you root? If not, try killing a process or deleting a file using root by prepending sudo before your command. For example: sudo kill -STOP $pid
  • Malicious process keeps coming back? Go over the steps again, but this time note down where the malware resides. Make that directory and its files unmodifiable by making use of the chattr command. For example, malware is being recreated in /usr/bin/. Use the command: chattr -R +i /usr/bin/ Then, stop the parent, wait for the children to die and kill the parent. Remove the files. Don't forget to use chattr again after you cleaned the infection. (in our example: chattr -R -i /usr/bin/)

    It's also possible the malware is temporarily storing files into /tmp/ while you are trying to kill its processes. When that happens, use the same chattr command on the /tmp/ directory and start over. If you are in doubt, use that chattr command on all aforementioned directories and start over. Very important: do not forget to use chattr -R -i on them afterwards!
  • In rare cases, the attacker may still be connected to your box. If possible, cut the internet connection and go over the disinfection steps. If this is not possible, firstly stop SSH by entering the command:
    sudo /etc/init.d/ssh stop

    Then, use iptables to drop any connection to the IPs the malware is connecting to (use netstat for example, see also Diagnosis) and to drop any connection from the attacker or cybercriminal. How to do this:

    In our example, we learned that our C&C's were 103.25.9.228 and 103.25.9.229. Thus, type or copy/paste these 2 commands:
    iptables -A OUTPUT -d 103.25.9.228 -j DROP
    iptables -A OUTPUT -d 103.25.9.229 -j DROP


    To block connection(s) from the attacker (you can find the attacker's IP using netstat for example):
    iptables -A INPUT -s $attackerIP -j DROP

    Don't forget to save your freshly created iptables rules by using the command
    /etc/init.d/iptables save

    Afterwards, change all passwords. (SSH, your user, root)

Best case scenario here is obviously:

  • restoring from a backup
  • if the machine is virtual, restore to a previous snapshot
When you have either of these available, don't forget to change all passwords afterwards to prevent re-infection - and patch your machine(s)!

Some Xor.DDoS variants may also incorporate a rootkit. In that case, hope you have a "best case scenario" available to you. Once a box is fully compromised, it may be hard to reinstate it back to normal or its original state.

For double-checking for rootkits and other malware, you may want to check out chkrootkit. Alternatively, you can download and install an antivirus, for example ClamAV.

If you perform manual clean-up as indicated above and have confirmed all is in order again, you can install ClamAV and perform an extra scan to be sure. Better be safe than sorry. Then, follow the prevention tips below to stay safe.



Prevention
  • Use strong passwords for SSH or use keys instead of passwords for authentication. You can read how to do that here. In the unlikely event of you not needing SSH to a particular machine, disable it on that machine by:
    sudo apt-get remove openssh-server


    To disable it from starting up you can use:
    update-rc.d -f ssh remove
  • Don't open the incoming SSH port (default 22) to ANY, but rather restrict it to trusted IP addresses.
  • For more information about safely using SSH, see: SSH: Best practices
  • Use a strong firewall. In Linux there are many options, iptables is a solid choice. A good basic iptables howto can be found here. In a network or if you need to protect several machines, you may want to consider a seperate hardware appliance as your firewall/UTM/... of choice.
  • Iptables can do a very decent job once properly configured. In case you want to do less manual work, I advise to check out sshguard or artillery. Both can monitor and alert you when something funky happens. In the context of our blog post, it also looks for & protects against SSH bruteforce attempts. Another application to consider is fail2ban. An additional tool is snort. For more information about these tools, refer to their pages.
  • Consider using SELinux. Security-Enhanced Linux is a compulsory access control security mechanism provided in the kernel.

  • Consider locking down cron jobs to only certain users. To deny all users from using cron you can use:
    echo ALL >>/etc/cron.deny
  • Consider disabling remote root login. Read how to do that here.
  • If you browse a lot, consider using NoScript as well.
  • Keep your software and applications up-to-date, as on any system.
  • Consider installing an antivirus as second opinion or at least as an additional layer. This is not a necessity but may come in handy. I recommend ClamAV.
  • Don't forget to protect other appliances that may be running on *nix systems, for example your router (and nowadays, IoT devices). Upgrade the firmware as soon as possible and change the default root/admin password(s). Install updates/patches for your particular firewall/UTM/... as well.
  • For even more (general) tips on hardening your Linux system (not against Xor.DDoS in particular):
    20 Linux Server Hardening Security Tips




Conclusion
Don't be fooled: Linux malware very much exists and starts to become more prevalent. Other prevalent Linux malware nowadays is:

  • Every ELF malware made by the ChinaZ actor or group (Linux/ChinaZ.DDoS, Linux/Kluh, ...)
  • Linux/Aes.DDoS (Dofloo, MrBlack)
  • Linux/Bash0day (Shellshock, Bashdoor)
  • Linux/BillGates (Gates.B)
  • Linux/Elknot (DnsAmp)
  • Linux/GoARM (Ramgo, Goram)
  • Linux/IptabLes and Linux/IptabLex


Note that this list is not complete and new ELF malware may pop up every day. (it's not a question of if, but when it will pop up) You can find a list of (interesting) Linux malware here.

Hopefully you have learned new things along the way of this blog post. For any specific questions, don't hesitate to leave a comment or contact me on Twitter: @bartblaze

To conclude this blog post, some acknowledgements and resources/references:

Acknowledgements

My colleague from Panda France, Julien Gourlaouen for informing me about this incident.

Everyone who helped, helps and will help in battling creators of ELF malware, in particular @MalwareMustDie for their excellent research and increasing awareness about these threats.

Last but not least, thank you for reading my blog post.


Resources

AlienVault - Xor.DDoS hashes, IPs and domains (see also related pulses)
Avast -  Linux DDoS Trojan hiding itself with an embedded rootkit
Cisco -  Threat Spotlight: SSHPsychos
FireEye - Anatomy of a Brute Force Campaign: The Story of Hee Thai Limited
KernelMode - Linux/Xor.DDoS (samples)
KernelMode - List of Linux Malware
MalwareMustDie - Fuzzy reversing a new China ELF "Linux/XOR.DDoS"
MalwareMustDie - Linux/XorDDoS infection incident report (CNC: HOSTASA.ORG)
MalwareMustDie - A bad Shellshock & Linux/XOR.DDoS CNC "under the hood"
MalwareMustDie - Polymorphic in ELF malware: Linux/Xor.DDOS
Yale - ELF Format (PDF)
